| ขนาดพอร์ต: | 1/2"-1",DN15 ถึง DN100,3/4'',20~450มม.,BSPP | พลัง: | คู่มือ, ไฮดรอลิก, นิวเมติก, ไฟฟ้า, มอเตอร์ |
|---|---|---|---|
| ความดัน: | แรงดันปานกลาง แรงดันต่ำ แรงดันสูง 200psi/PN16,1.6MPa | โครงสร้าง: | บอล, ตรวจสอบ, ควบคุม, ผีเสื้อ, มุม |
| สื่อ: | น้ํา น้ํามัน ก๊าซ อากาศ คัน | การใช้งาน: | ทั่วไป,ถังเก็บน้ำ,หอหล่อเย็น,อื่นๆ,FAN COIL |
| มาตรฐานหรือไม่เป็นมาตรฐาน: | มาตรฐาน | วัสดุตัวเครื่อง: | ABS, PVDF, RPP, ไทเทเนียมหรือ WCB หรือสแตนเลส 316,304 |
| สี: | สีฟ้า, สีขาว, คำขอของลูกค้า, ต่างๆ, ทองเหลืองหรือชุบนิกเกิล/โครเมี่ยม | ขนาด: | 3/4",DN20(3/4''),DN25(1''),1",1/2" |
| พิมพ์: | Normal Colse,บอลวาล์ว,เครื่องปรับอากาศ,วาล์วลูกลอย | การเชื่อมต่อ: | หน้าแปลน, ด้ายหญิง, ด้ายชาย |
| ปานกลาง: | น้ำมัน น้ำ น้ำมันแก๊ส ก๊าซ อากาศ น้ำ | ความดันการทำงาน: | 0~0.6Mpa,1.0-1.6Mpa (10-25bar) |
| เน้น: | API 6D certified floating ball valve,fire-safe floating ball valve,oil and gas floating ball valve |
||

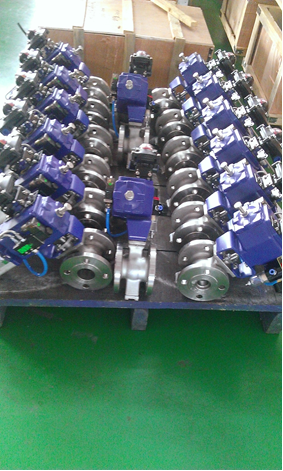

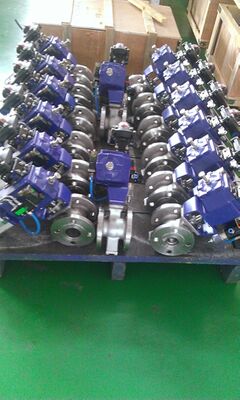

Our Floating Ball Valve is engineered for critical shut-off applications in the oil, gas, and petrochemical industries. Specifically designed to meet the demanding conditions of Middle Eastern oil fields and refineries, this robust valve ensures secure, bidirectional sealing and long-term performance. The floating ball valve design utilizes line pressure to achieve a tight seal, making it an ideal choice for process and pipeline systems requiring dependable isolation. Built to international standards, it guarantees safety and efficiency in your operations.
Robust Construction & Safety: Featuring a seat-supported design, this floating ball valve offers a two-piece or three-piece body for flexibility. Key safety elements include a fire-safe design per API 607, anti-blowout stem, and anti-static device, ensuring protection in hazardous environments.
Superior Sealing & Reliability: The floating ball valve provides double block and bleed capability (optional with a double ball design). Its cavity pressure self-relief feature prevents dangerous pressure buildup, enhancing system safety.
Zero-Leakage Performance: Engineered for exceptional sealing, the valve is available with fugitive emission testing to meet stringent environmental and operational standards, minimizing product loss and emissions.
Durability for Harsh Climates: Constructed from a wide range of materials including carbon steel, stainless steel, duplex stainless steel, and alloys like Inconel, our floating ball valve withstands corrosive and high-pressure conditions typical in the Middle Eastern market.
Flexible Operation: Available with manual lever, gearbox, or automated actuation (electric, pneumatic, hydraulic) for remote and critical control applications.
| Parameter | Specification |
|---|---|
| Design Standard | API 6D, DIN 3357-1, EN 12516-1 |
| Size Range | 1/2" – 8" |
| Pressure Class | Class 150 – 600 |
| End Connections | RF, RTJ, FF, BW, BSPT, NPT |
| Body Materials | Carbon Steel, Stainless Steel, Duplex, LTCS, Inconel, Monel, Alloy Steel, Al-Bronze |
| Testing Standard | API 6D, API 598 |
| Fire Safe Standard | API 607 |
Q1: What is the main advantage of your floating ball valve for oil field service?Its robust, fire-safe API 607 design and reliable sealing make our floating ball valve exceptionally suitable for the harsh, high-integrity requirements of oil field applications, ensuring safety and minimizing downtime.
Q2: Do you offer customized floating ball valves for specific project needs?Yes. We provide various material trims, end connections, and actuation options. The floating ball valve can be tailored to specific pressure, temperature, and media requirements common in Gulf Cooperation Council (GCC) projects.
Q3: What certifications do your valves carry?Our floating ball valves are designed and manufactured per API 6D, with fire-safe certification per API 607. They undergo rigorous testing as per API 598, ensuring global compliance for oil and gas projects.
Q4: What is the typical delivery lead time for sizes up to 8" Class 600?Lead times vary based on material and specification. Please contact our sales team for an accurate schedule, as we stock popular configurations for the Middle Eastern market.
Q5: Why is the floating ball valve a preferred choice for main pipeline isolation?The floating ball valve offers excellent sealing, full bore flow with minimal pressure drop, and easy operation, making it a dependable and low-maintenance solution for critical pipeline block valves.
